MOSFET ASTER V3 SE EXPERT

ASTER SE is a complex system that turns your AEG into future-proof advanced training equipment. Unleash the full potential of your AEG by replacing trigger contacts with an advanced Computerized Trigger Unit. Gain unique tactical advantage thanks to extremely fast trigger response and lots of other useful functions.

ASTER SE raises the price-performance ratio including new functions programmable via trigger. Now, out-of-the-box, you can set sensitivity from hair to full movement. Improved Programming via Trigger gives you new settings like automatic Pre-Cocking (LOW, MID, HIGH), trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode and new SAFE - SEMI - BINARY selector mode. Calibration, DTC codes - all available just via trigger and selector movement. ASTER SE's smart fuse protects your AEG’s battery, motor, and the controller, even in the case of reverse battery connection. This feature, along with the optical sensors, makes ASTER SE one of the most durable ETUs on the market.

Supply Voltage Range 3.75-12.9 V

Current Consumption 23 mA

Low Power Mode 288 µA

Dimensions (Length x Width x Height) 43.8 mm x 28.7 mm x 7.2 mm

Finished Product Weight 22.25 g

Operating Temperature Range min. -15°C max. + 50°C

Relative Humidity ≤ 80%

What makes ASTER SE so special?

Everything you need out-of-the-box

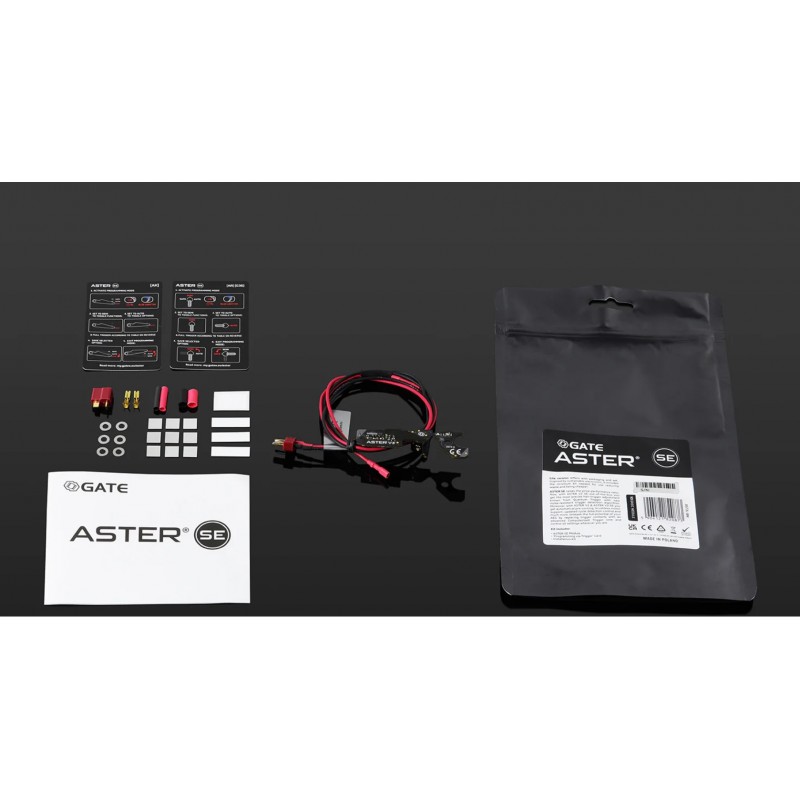

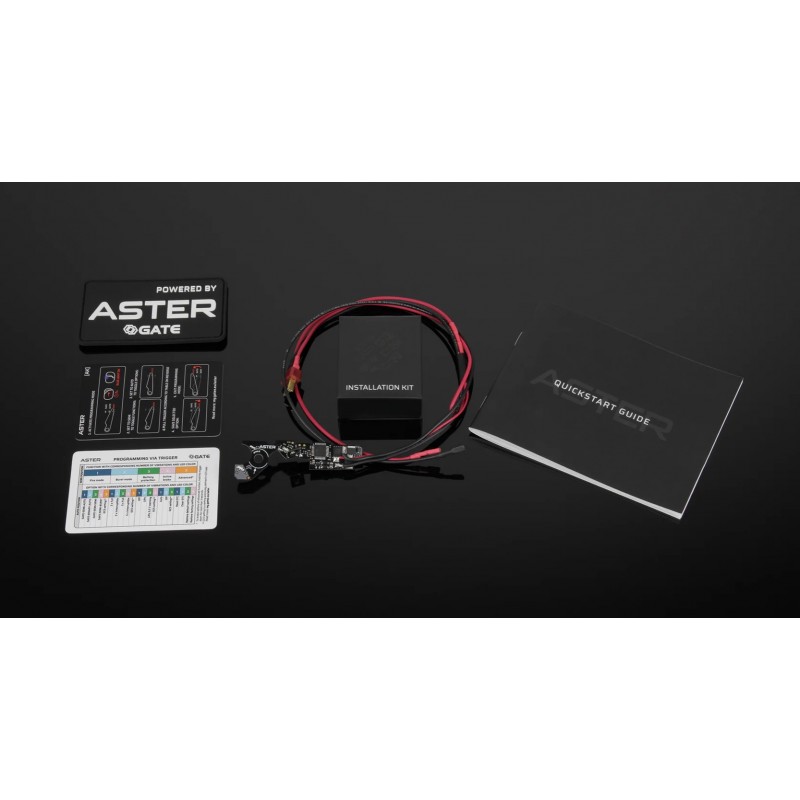

Quantum Trigger included in the kit

No need to use USB-Link for installation and configuration

New noise-resistant trigger detection algorithm

Hair-trigger out-of-the box. Even 60 trigger sensitivities for the 1st mm (0.04 in) of movement

Additional protection against interferences thanks to multi-layer PCB with EMC shield

Automatic Pre-Cocking: LOW / MID / HIGH

Trigger sensitivity adjustment without any limitation

Improved cycle detection

Active brake adjustment: Adaptive / 100% / 60% / Brushless motor / OFF

New selector mode: SAFE - SEMI - BINARY instead of SAFE - BINARY - AUTO

GCS App allows for making firmware updates via the internet, which enables quick applying of improvements
