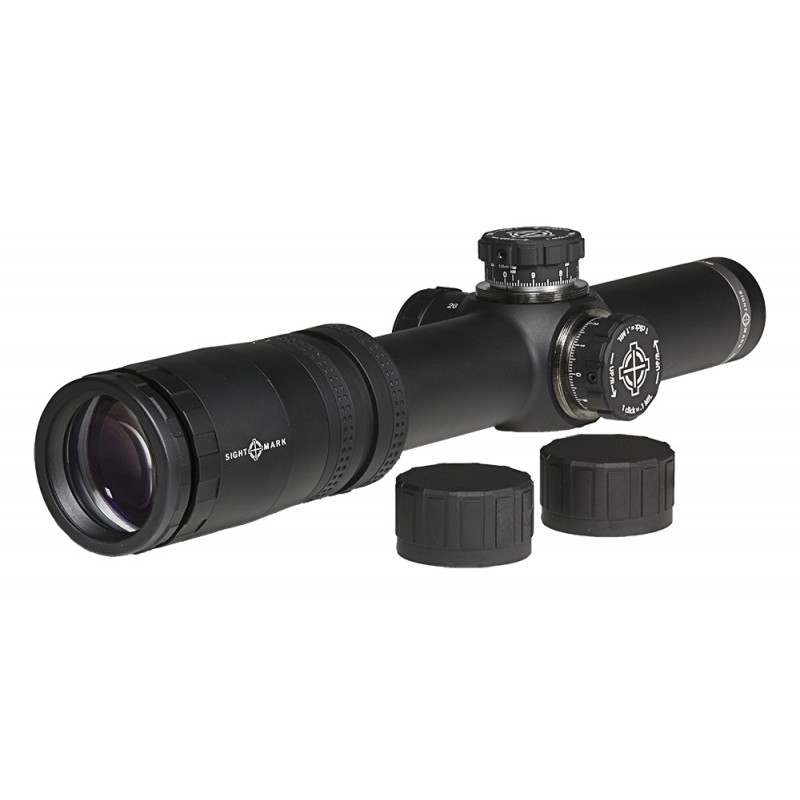

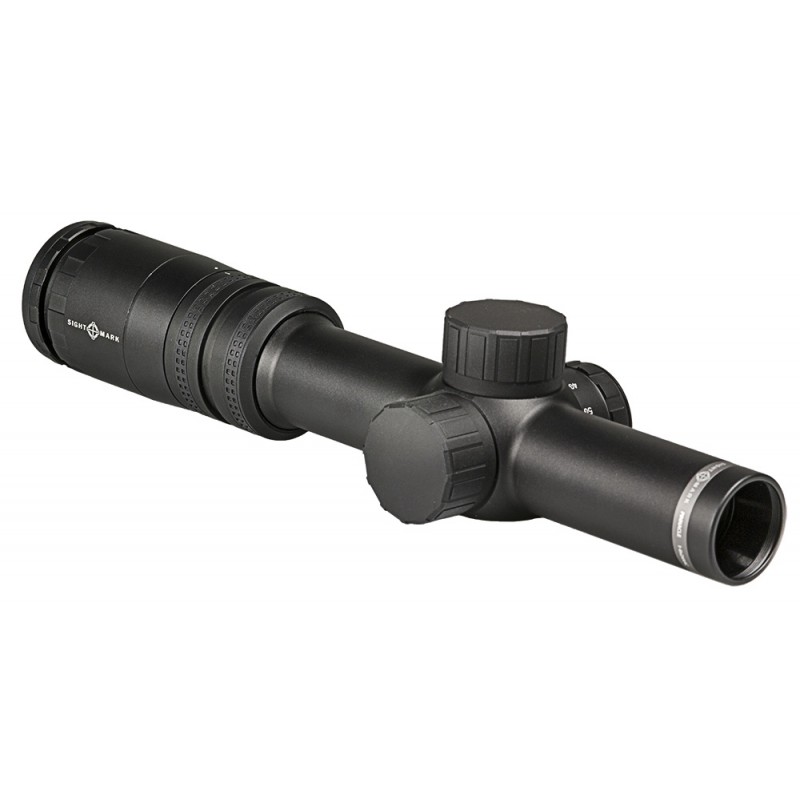

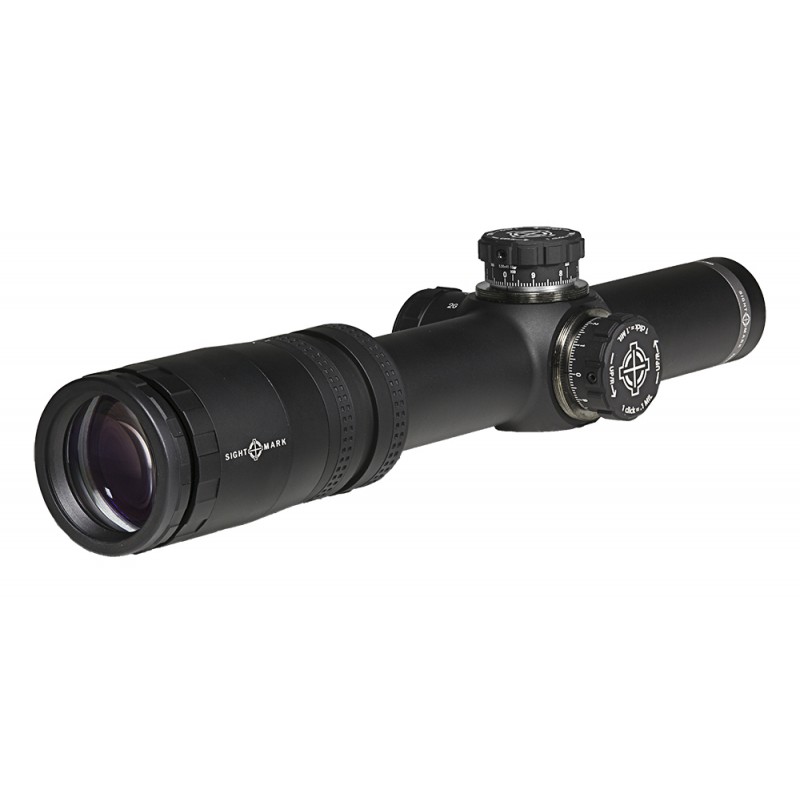

LUNETA PINNACLE 1-6X24AAC

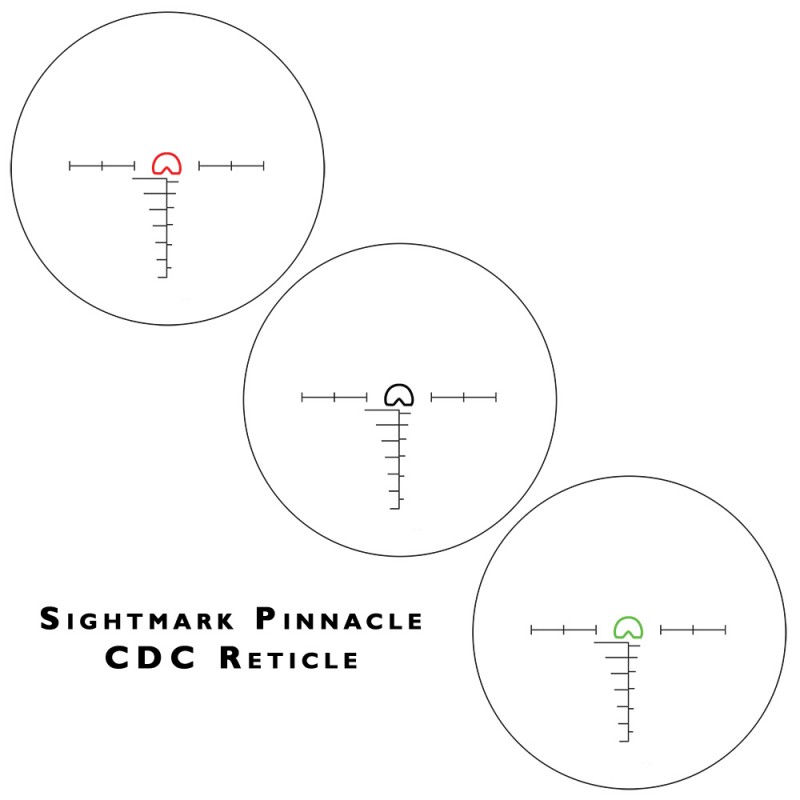

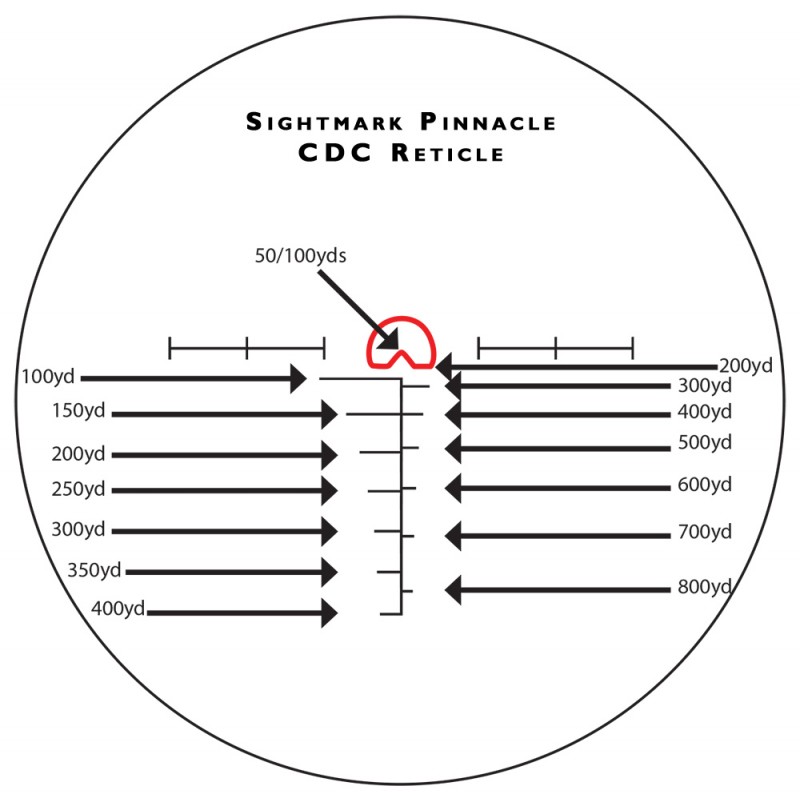

Reticle, Type CDC-300

Reticle, Color Red/Green

Reticle, Illuminated Yes

Setting, Brightness 1 - 5

Finish/Color Matte black

Magnification 1 - 6 x

Diameter, Objective Lens 24 mm

Diameter, Eyepiece 33 mm

Diameter, Exit Pupil 24 - 4 mm

Eye Relief 103 mm

Field of View 29.7 - 5.2 m @ 100m

Field of View 90 - 15.9 ft @ 100yd

Field of View 10 - 3.04 degrees

Diopter Adjustment 3.5 to -3.5

Diameter, Tube 30 mm

Parallax Setting 100 yds

Windage Range of Adjustment 140 MOA

Elevation Range of Adjustment 140 MOA

MOA Adjustment 1/2 MOA

Maximum Recoil 800 g's

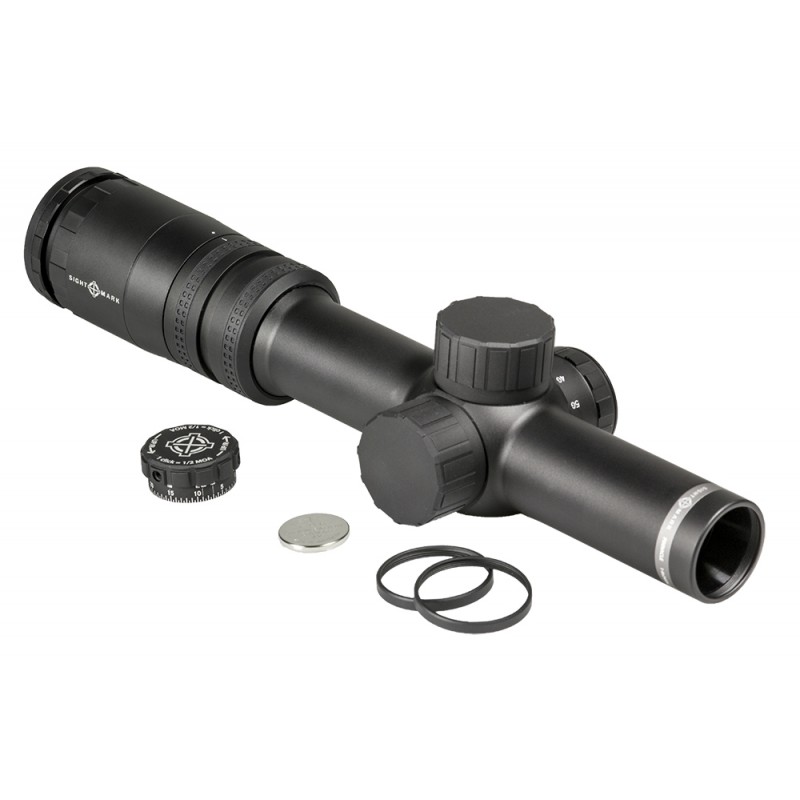

Battery Type CR2032

Battery Life 3 hours

Battery Voltage 3 V

Nitrogen Purged yes

Shockproof yes

Fog Proof yes

Focal Plane first

IP Standard IP67 (submergible to 1m)

Body Material aluminum - 6061

Material, Lens glass

Lens Coating fully multicoated AR green

Operating Temp,�F/�C -20 to 160 / -29 to 71 F/C

Length 10.2 / 260 in/mm

Width 2.89 / 73.5 in/mm

Height 2.2 / 56 in/mm

Weight 20.4 oz
